Bluetooth Bluetooth 5.0; elm327 V2.2 auto fault detector; auto fault detector; obd diagnostic tool; car Bluetooth reading code card; factory dire

SPU: PSVP101

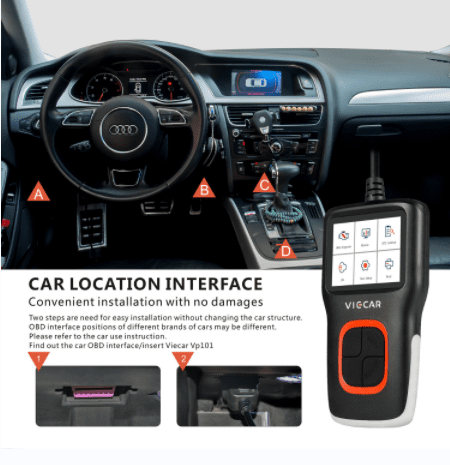

Trade name: Bluetooth Bluetooth 5.0; elm327 V2.2 auto fault detector; auto fault detector; obd diagnostic tool; car Bluetooth reading code card; factory direct sales (PSVP101 is a CAN OBDII / EOBD code reader; it also has a 2.8-inch TFT color screen and function I / M ready to test; it can provide accurate information and accurate judgment).
technical parameter
Main control chip: STM32F103VET6
Software platform: Support window
Operating voltage: DC 8 ~ 36V
Operating current: 50 mA
Standby current: 5 mA
Operating environment: -20 ~ 65℃
Storage temperature: -30 ~ 80℃
Product size: 154.5 * 85 * 24mm
packing measurement:mm
Product weight: g
packing quantity:pcs

product function:
1. 9 standard protocols supporting OBD II / EOBD
2. Support OBD functions such as vehicle-fault diagnosis and real-time data flow
3. With data waveform display; data storage and playback functions
4. Data with emission tests
5. High-resolution color LCD screen
6. Good reliability; wide range of power supply voltage; 8 ~ 36V; with strong overcurrent and overvoltage protection function
7. 8 languages are supported

product description
1. Read the error diagnostic code
2. Clear fault code (clear error code and close MIL)
3. Engine speed per minute (RPM)
4. Calculated load value
5. Coolant temperature
6. Fuel oil system status
7. Speed
8. Short-term fuel status
9. Long-term fuel conditions
10. Intake-air manifold pressure
11. Fuel injection advance time
12. Intake air temperature
13. Air flow velocity
14. Absolute position of the throttle
15. Oxygen detection voltage associated with the short-term fuel status
16. Fuel oil system status
17. Fuel oil pressure
18. Fuel consumption monitoring; etc.
19. Recommended APP; FOR Android: torque; OBD Home; FOR Apple: car scanner; OBD Auto Doctor; OBD Home
20. Small size; high chip integration; independent appearance patent; utility model patent and software copyright.
21. Certified by CE; FCC; and RoHS.

Support agreement
S1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init; 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init; 10.4 Kbaud)
5.ISO14230-4 KWP (fast init; 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID; 500 Kbaud)
7.ISO15765-4 CAN (29bit ID; 500 Kbaud)
8.ISO15765-4 CAN (11bit ID; 250 Kbaud)
9.ISO15765-4 CAN (29bit ID; 250 Kbaud)
